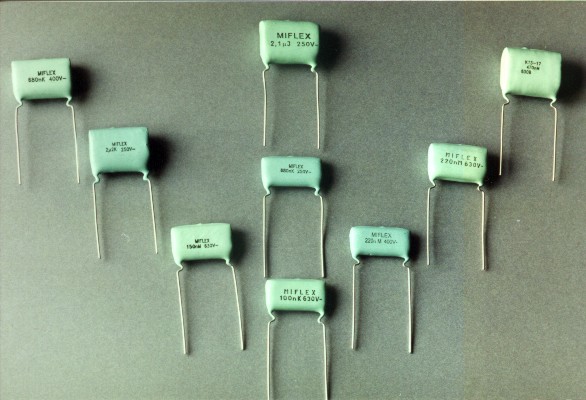

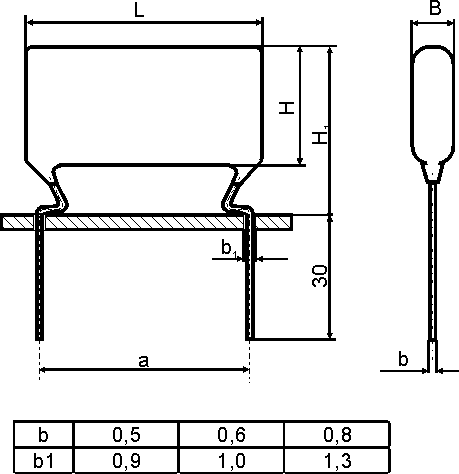

Kondensatory MKSE-20

APPLICATION:

The fixed metallized polyester film capacitors are intended for use in d.c circuits.



Climatic category 55/100/21
 Test voltage between terminals for



 UR>63V - 1,6UR

UR<63V - 1,4UR
between terminals and case for:



 UR>100V - 2UR

UR<100V - 200V-
Capacitance tolerance : 5%, 10%, 20%
Dissipation factor (tgd) <0,01 przy f=1000Hz
 Insulation resistance Riz or product Riz xCR at +200C  between terminals for:





 CR>0,33µF iUR>100V - >30 000 MW
CR>0,33µF i UR>100V - >10 000 s
CR<0,33µF i UR=100V - >15 000 MW
CR<0,33µF i UR<100V - >3 750 MW
CR>0,33µF i UR=100V - >1 500 s
CR>0,33µF i UR<100V - >1 250 s
 between terminals and case for >310 000MW
Specification:  ZN-98/MP/MIFLEX/01/05
