Capacitance “X” - X2 class
Capacitance “Y” - Y2 class

Nominal voltage:                 250VAC
Electric strength test (2s):    1700VDC - X class
                                          3000VDC - Y class


Attention:Special dimensions, parameters and cases available upon request in current range 0,5÷2A

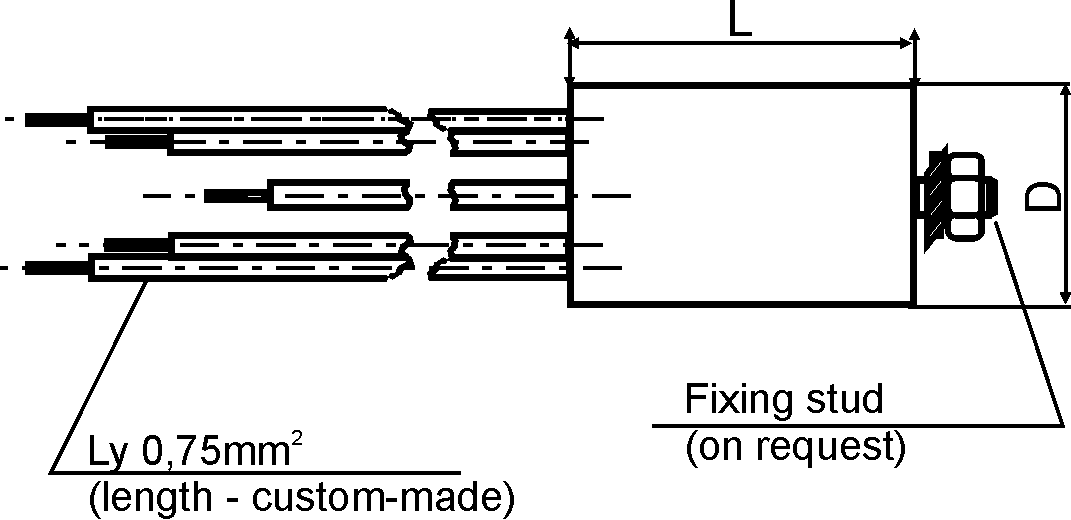

Aluminium case - stranded Cu-wire

Plastic case

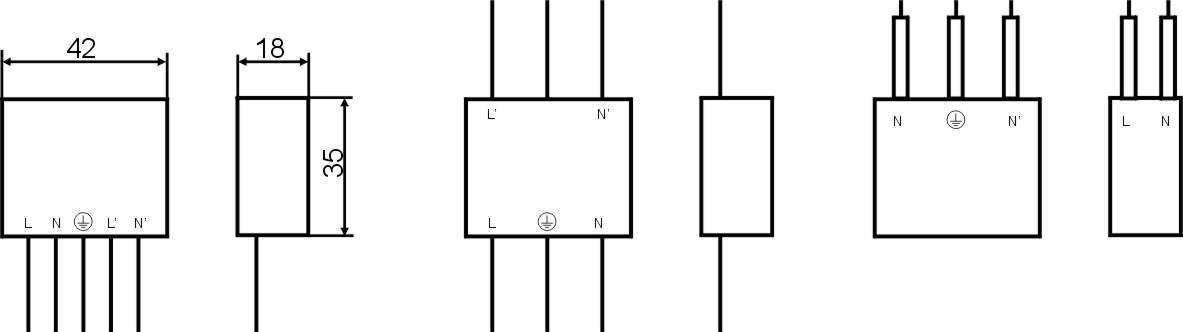

  TYPE 1T                                           TYPE 2T                                        TYPE 3T

                         For PCB                                   Two-sided Cu-wire                Stranded Cu-wire Ly 0,5mm²
