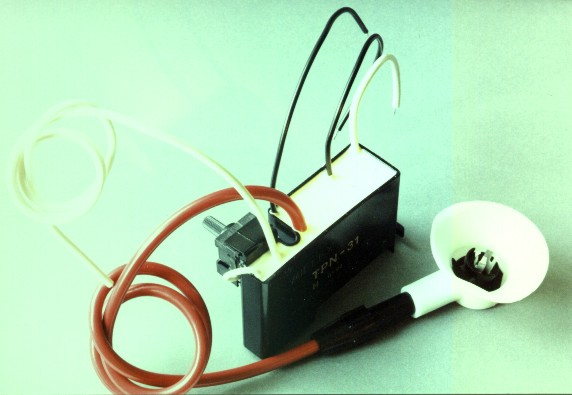

THE TPN-3...TRIPLES FAMILY

APPLICATION:

The TPN-30... Family high voltage multipliers are designed to produce the accelerationg voltage, focus voltage and second-grid voltage in colour television receivers.

SERVICE RATED PARAMETERS ( NOMINAL VALUES):

Input pulse voltage(peak-to-peak value):                        8,6kV
Output voltage (U_H):                                                       25±0,5kV
Output current (I_H):                                                               1,5mA

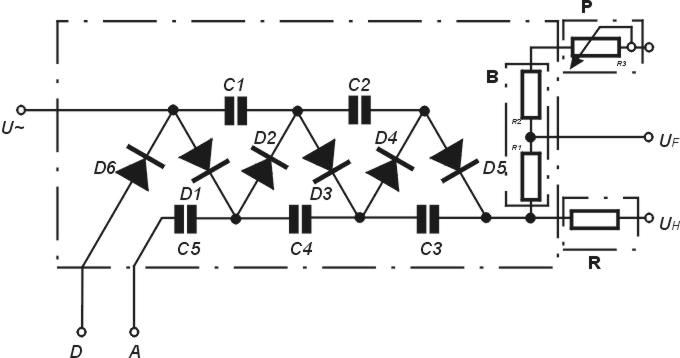

Current of D6 diode (I_D6)                                                     3,5mA

LIMIT VALUES OF MULTIPLIER PARAMETERS

Input pulse voltage(peak-to-peak value)                               10kV
Input pulse voltage(peak-to-peak value) without lead 1      0kV
Output voltage (U_H):                                                                 27,5kV
Output voltage without lead (U_H):                                           30kV
Output current (I_H):                                                                   1,7mA
Maximum current of D6 diode (I_D6)                                         4mA
Maximum working temperature:                                 338K (650C)
Storage temperature:                                 248÷343K (-25÷+700C)
Input capacitance:                                                                     <14pF
Input resistance (Rps):                                                         <550kW


Focusing range:                                            TPN-30 4,0÷5,3KV
                                                                            TPN-31 6,3÷7,6kV
                                                                            TPN-32 5,5÷6,5kV
                                                                            TPN-33 7,6÷8,4kV
Specifications: WT-88/1-TPN
